Disk Table

Columns

You can configure which columns are shown by the disk table widget by setting the columns setting:

[disk]
# Pick which columns you want to use in any order.
columns = ["Disk", "Mount", "Used", "Free", "Total", "Used%", "R/s", "W/s"]

Filtering Entries

You can filter out what entries to show by configuring [disk.name_filter] and [disk.mount_filter] to filter by name and mount point respectively. In particular, you can set a list of things to filter with by setting list, and configure how that list is processed with the other options.

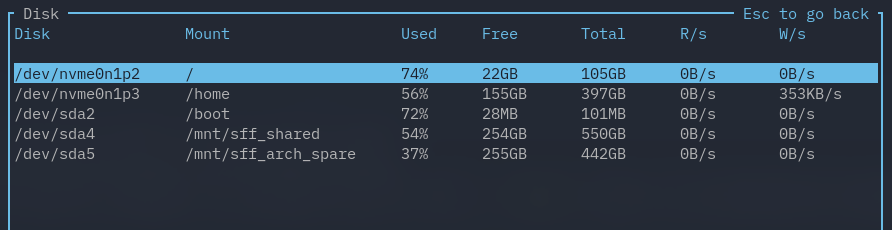

For example, consider a disk widget showing these entries:

If we wanted to ignoring any entry with a name that matches /dev/sda:

[disk.name_filter]
# Whether to ignore any matches. Defaults to true.
is_list_ignored = true

# A list of filters to try and match.
list = ["/dev/sda"]

# Whether to use regex. Defaults to false.
regex = true

# Whether to be case-sensitive. Defaults to false.
case_sensitive = false

# Whether to be require matching the whole word. Defaults to false.
whole_word = false

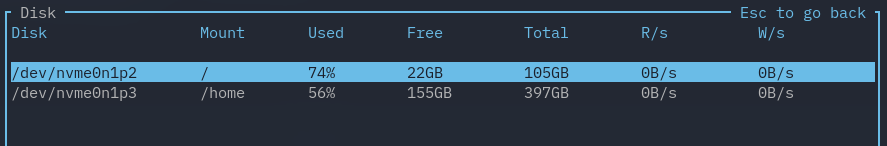

This would give us:

We can also combine both the name filter and mount filter. For example:

[disk.name_filter]
is_list_ignored = false
list = ["/dev/sda"]
regex = true
case_sensitive = false
whole_word = false

[disk.mount_filter]
is_list_ignored = true
list = ["/mnt/.*", "/"]
regex = true
case_sensitive = false
whole_word = true

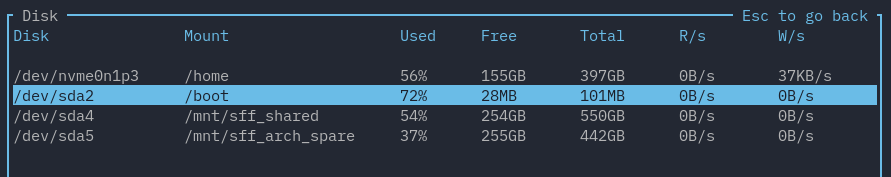

This gives us:
